Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture

Place of Origin Shandong,China
Brand Name OEM
Certification ISO
Model Number WD-G002
Minimum Order Quantity 1 Ton
Price USD 600-750 per Ton
Packaging Details seaworthy
Delivery Time 7-17days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 100,000 ton per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Single Span PE Film Greenhouse

,

Galvanized Steel PE Film Greenhouse

,

Tunnel Greenhouse Galvanized Steel Frame

Leave a Message
Product Description

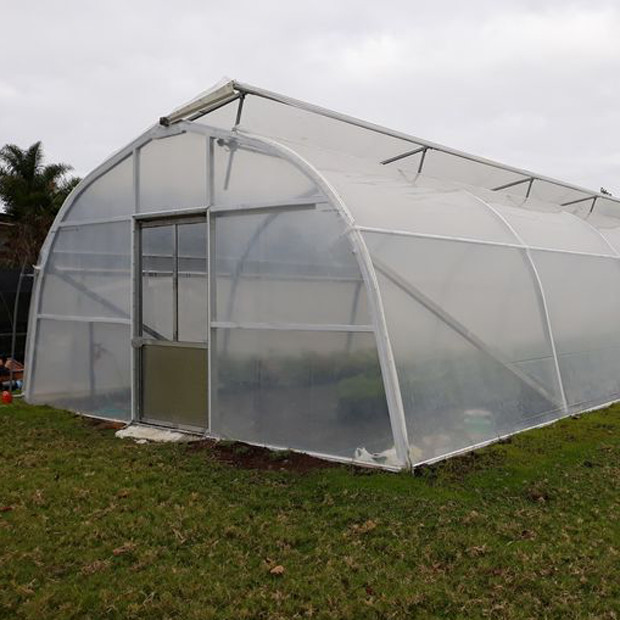

Galvanized Steel Frame Single Span PE Film Greenhouse For Agriculture Low Cost Tunnel Greenhouse For Flowers Plant

Greenhouse, also called hot house, is the facility used to improve the capacity of the plants like fruit, vegetables, flower….by controlling the light, temperature and humidity in specific growing area. It is composed of seedbed, steel framework, covering material, irrigation system, cooling system, heating system, irrigation system and hydroponic system, internal and outer shading system. By making full use of its dominant advantage in making suitable closed environment, greenhouse is widely used in planting, show sighting, product exhibition, ecological restaurant, and seeding factory.

Greenhouse frames used for agriculture

FOR GREENHOUSE BLUEBERRY
Covering Material
Cover: PE/PO film
Features:anti-aging, anti-ultraviolet, anti-drip
Thickness:150/200micorn
Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 1

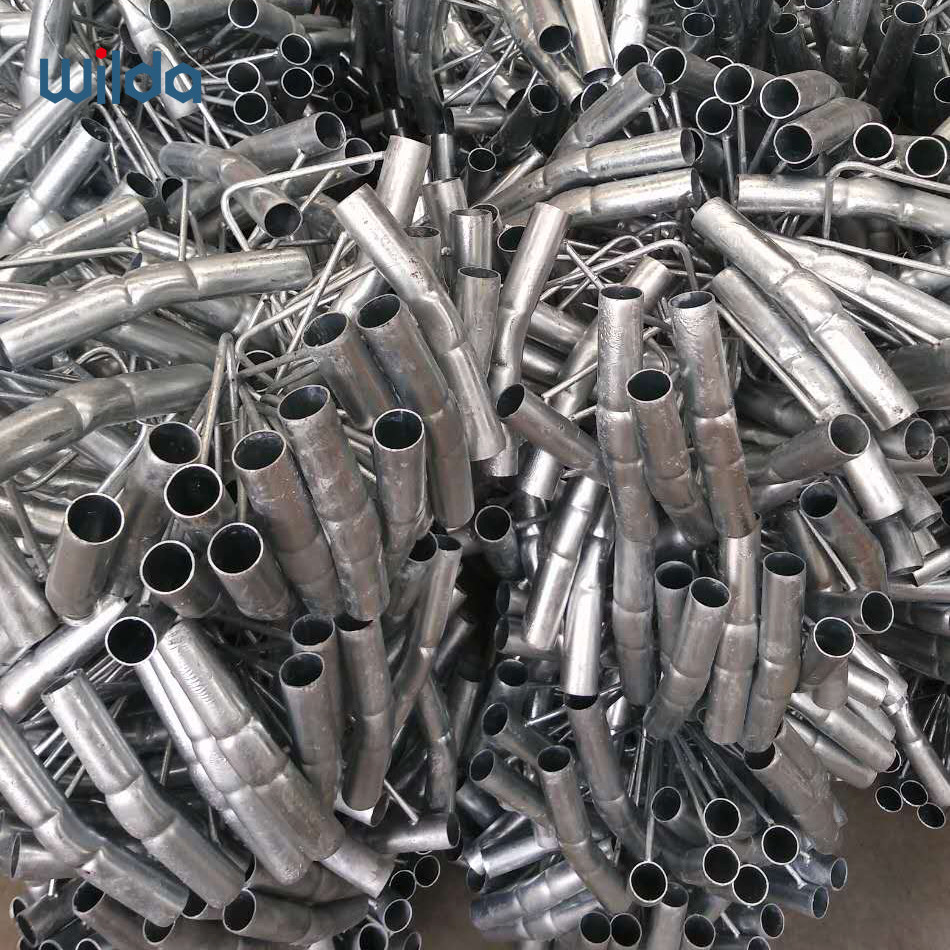

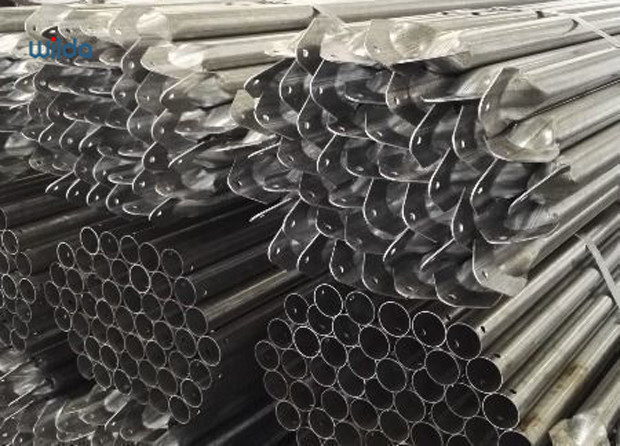

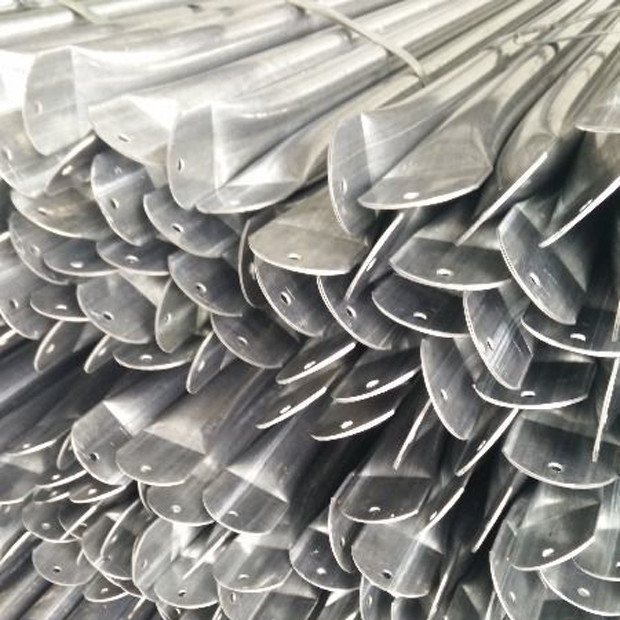

Frame Material
The greenhouse frame is made of hot-dip galvanized steel pipe, no welding points, not easy to rust, extend service life.Galvanized Steel Structure provides long life +20 years and hard resistancy to corrosion.



Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 2

Width/meter
Length/meter
Height/meter
Remarks
8
40 to 60
4 to 5.8
customzied
8.5
40 to 60
4 to 5.8
customzied
9
40 to 60
4 to 5.8
customized

low cost hot sale polytunnel berry greenhouse pipe size based on local climate

Column
48mm
42mm
40mm
32mm
Arch
42mm
40mm
32mm
25mm
Wind brace
42mm
40mm
32mm
25mm
Ventilation
Side/top , Auto/manual roll up ventilation



Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 3

Product Introduction

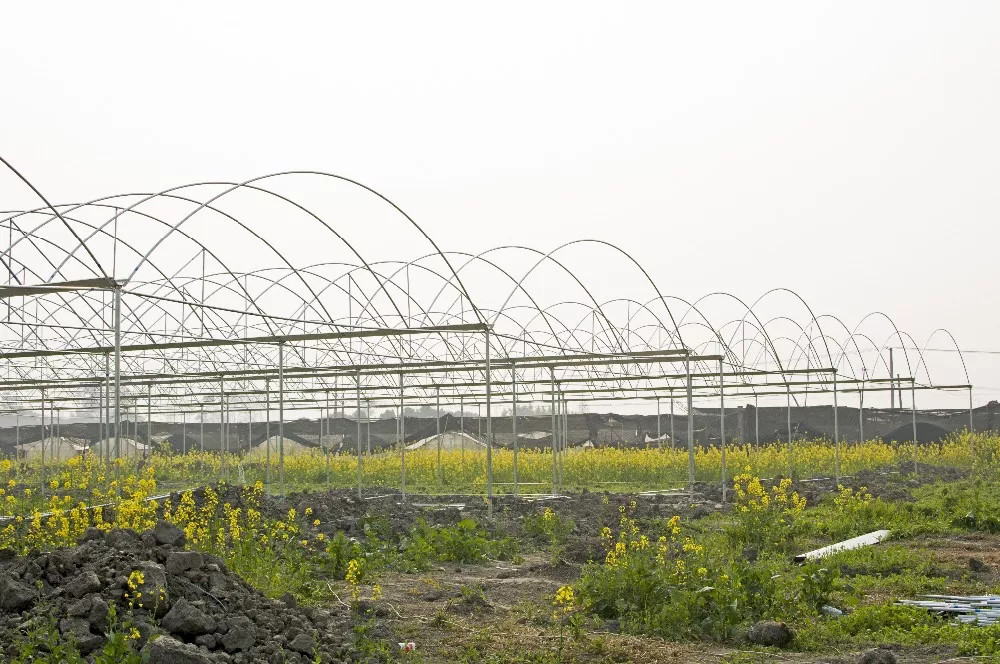

High multi-tunnel greenhouse

The multi-tunnel greenhouse is good choice for strawberry, blueberry, raspberry , high value flowers, salads, vegetables, ornamentals and nursery stock.

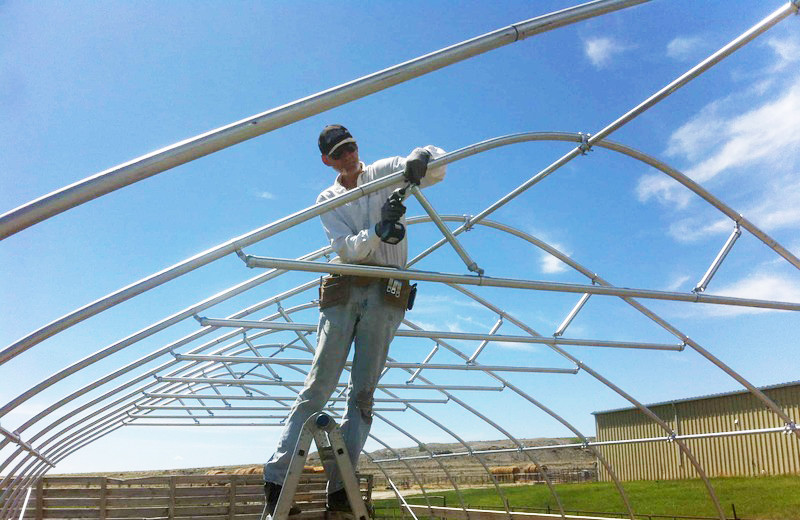

This high tunnel greenhouse is easy and fast installation, affordability and good frost protection which make this a great seasonal choice for farmers and produce growers.

Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 4
Features of polytunnel berry greenhouse

1. Enormously cost-effective.

2. Strong stability, strong bearing capacity, strong performance and practicability of operation.

3. Usually no soldering required, Rapid and easy installation.

4.Excellent ventilation.
Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 5
Greenhouse Top
Top cover film for rain protection. Top gutter for effective drainage and avoid rainwater accumulation.
Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 6
Covering Material
Cover: PE/PO film
Features:anti-aging, anti-ultraviolet, anti-drip
Thickness:150/200micorn
Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 1
Frame Material
The greenhouse frame is made of hot-dip galvanized steel pipe, no welding points, not easy to rust, extend service life.Galvanized Steel Structure provides long life +20 years and hard resistancy to corrosion.



Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 2

Width/meter
Length/meter
Height/meter
Remarks
8
40 to 60
4 to 5.8
customzied
8.5
40 to 60
4 to 5.8
customzied
9
40 to 60
4 to 5.8
customized

low cost hot sale polytunnel berry greenhouse pipe size based on local climate

Column
48mm
42mm
40mm
32mm
Arch
42mm
40mm
32mm
25mm
Wind brace
42mm
40mm
32mm
25mm
Ventilation
Side/top , Auto/manual roll up ventilation



Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 3

Complementary Systems

Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 10

Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 11

Bench System:

1.Rolling bench, fixed bench,rotary bench and ebb&flow bench system.
2.High space effiency,convenient for planting and high productive for crops.
Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 12

Shading System:

1.High pressure sodium lamp,or LED lamp;
2.Semi-auto control or intelligent control;
3.Persistant ligh for pants grows.
Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 13

Cooling system

Cooling fan and cooling pad
Great performance of ventilation Low operating cost Fast cool-down low noise High efficiency motor
Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 14

Irrigation System:

1.Drip,impulse sprinkler, micro sprinkler and fog spray irrigation system.
2.Water saving and smart.

Why Choose Us ?

Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 15



Galvanized Steel Frame Tunnel PE Film Greenhouse Single Span For Agriculture 16
