Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1

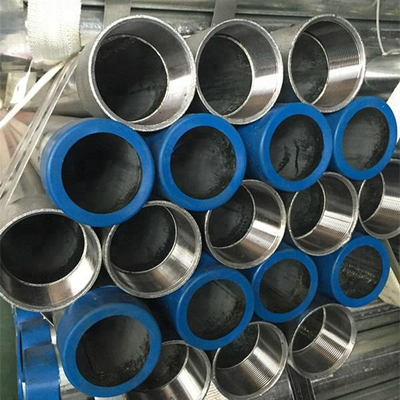

  • Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1

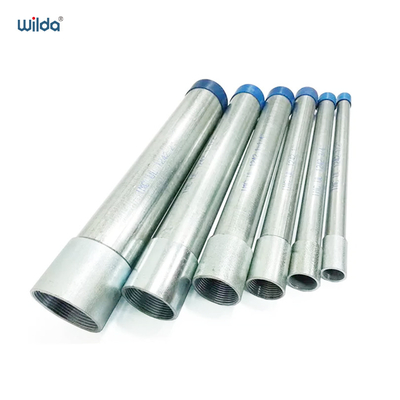

  • Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1

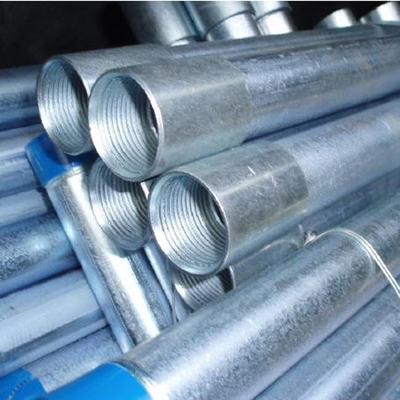

  • Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1
Place of Origin Shandong , China
Brand Name wilda / OEM
Certification CE ISO
Minimum Order Quantity 5 Tons
Price $500-$700
Packaging Details seaworthy
Delivery Time 7-15 days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 100,000 Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type EMT Galvanize Steel Conduit Material Steel Of Bs4568 Class 4 Gi Cable Pipe
Application Electric Cable Wire Protection Grade 20#,A53(A,45#,Q345,Q235
Technique ERW Surface Treatment Galvanized,customized
Length 3.75m Of Galvanised Metal Electrica Conduit Grade Group A53-A369,Q195-Q345,16Mn,ST35-ST52
Highlight

Galvanized Steel EMT Conduit Pipe

,

EMT Conduit Pipe BS4568

,

BS4568 metal electrical conduit pipe
Leave a Message
Product Description
Galvanized Steel Electric EMT Conduit Pipe Conduit 90 With UL6 ANSI C80.1

Detailed Product Description

  • Standard: UL6 & ANSI C80.1
  • Certificates: UL Listed, certificate No.E308290 (177709-001)
  • Trade Size: From 1/2” to 6”
  • Both ends:Threaded both ends with one coupling and plastic cap
  • Length:3050mm or according to customer’s requirement
  • Usage:Through the electrical wires with the purpose of protection for the electrical raceway system
  • Surface Finished: Hot dip galvanized(HDG).
  • Material: Carbon steel coil
  • Package: The conduits cover with PVC paper then tied with steel straps
  • Delivery Time: 25 to 35 days after we receive your advance payment or copy of L/C
  • Payment Term: L/C at sight or T/T



Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1 0

Product Name
Bs4568 class 4 gi cable pipe
Material
Steel of Bs4568 class 4 gi cable pipe
Color
nickel white of Bs4568 class 4 gi cable pipe
Standard
BS4568 of class 4 gi cable pipe
Grade
Class A,Class B of Bs4568 class 4 gi cable pipe
surface preparation
Pre-galv of Bs4568 class 4 gi cable pipe
Thickness
1.3mm---1.8mm of Bs4568 class 4 gi cable pipe
Used
building industry machinery, protecting cables and wires



Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1 1

Size: 1/2"- 4"
Material: steel
Standard:Accord to ANSI C80.3,UL797
Electrical Metallic Tubing (EMT) is unthreaded, circular cross-section. It always used for protecting wires and cables.

Norminal Trade Size
Outside Diameter
Wall Thickness
Length
U.S.
Metric
inch
mm
inch
mm
mm
mm
1/2"
16
0.706
17.93
0.042
1.07
3000
3050
3/4"
21
0.922
23.42
0.049
1.25
3000
3050
1"
27
1.163
29.54
0.057
1.45
3000
3050
1-1/4"
35
1.51
38.35
0.065
1.65
3000
3050
1-1/2"
41
1.74
44.2
0.065
1.65
3000
3050
2"
53
2.197
55.8
0.065
1.65
3000
3050
2-1/2"
63
2.875
73.03
0.072
1.83
3000
3050
3"
78
3.5
88.9
0.072
1.83
3000
3050
3-1/2"
91
4
101.6
0.083
2.11
3000
3050
4"
103
4.5
114.3
0.083
2.11
3000
3050

Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1 2

Products Description
Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1 3Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1 4


Technological Process



Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1 5

Why Choose Us?

Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1 6 Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1 7

Packaging& Delivery


Electric Galvanized Steel EMT Conduit Pipe BS4568 Class 4 With UL6 ANSI C80.1 8




These pipes are widely used for conveying raw water & distribution of treated water in majority of rural water supply schemes, where the requirement of water is less. Mostly medium quality GI pipes are used.
