Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends

Place of Origin Shandong , China
Brand Name wilda / OEM
Certification CE ISO SGS
Minimum Order Quantity 1 Ton
Price $500-$700
Packaging Details seaworthy
Delivery Time 7-15 days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 100,000 Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM,GB,DIN,API Thickness 0.5 - 20 Mm,1 - 8 Mm,2.5 - 80 Mm,0.16mm,10 - 60 Mm
Application Fluid Pipe,Structure Pipe,Construction,Boiler Pipe,Chemical Industry Grade 20#,A53(A,45#,Q345
Technique ERW Standard2 ASTM A106-2006,ASTM A53-2007,DIN 2391
Surface Treatment Galvanized,customized Length 5.8-12m,6 .0 Meter For Bulk Shipment 5.7 Meter For Container Shipment,0.5m-23m
Grade Group A53-A369,Q195-Q345,16Mn,ST35-ST52
High Light

Hot Dipped Pre Galv Tube

,

Pre Galv Tube Electric Welded Resistant

,

Hot Dipped pre galvanized square pipe

Leave a Message
Product Description
Galvanized square pipe
It means that ordinary carbon building steel can effectively prevent corrosion and rust of steel after galvanizing, so as to prolong the service life of steel, including electro galvanizing and hot-dip galvanizing.
Generally used for building exterior walls, such as glass curtain wall, marble curtain wall and aluminum curtain wall as columns and stress-bearing materials, or for outdoor telecommunications towers, highways and other open-air buildings, steel is called galvanized steel, in which galvanizing is divided into electro galvanizing and hot-dip galvanizing.
Product Description
Product Name
Galvanized square pipe
Specifications
Square pipe: 20*20mm~500*500mm
Thickness: 1.2mm~20mm
Length: 2.0m~12m
Material
Low carbon steel
Steel Grade
Q195 = S195 / A53 Grade A
Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2
Q355 = S355JR / A500 Grade B Grade C
Standard
EN10219, EN10210
GB/T 6728
JIS G3466
ASTM A500, A36
Surface Anti-rusty Coating
pre-galvanized (Zinc coating: 40-80g/m2)
hot dipped galvanized (Zinc coating: 200-600g/m2 )
Pipe Ends
Plain ends
Certificates
ISO 9001 / ISO 18001 / ISO 14001 / CE
Packing and Shipment
1. OD 300mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles
2. above OD 300mm in bulk or according to custom opinion
3. 25 tons/container and 5 tons/size for a trial order;
4. For 20" container the max length is 5.8m;
5. For 40" container the max length is 11.8m.
Usage
Construction / building materials steel pipe
Structure steel pipe
Solar structure component steel pipe
Fence post steel pipe
Greenhouse frame steel pipe
Trade terms
FOB, CFR, CIF, EXW,
Payment terms
T/T, LC
Delivery time
15-35 days (based on quantity) after receiving advanced payment by T/T or LC .
Main market
Southeast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania

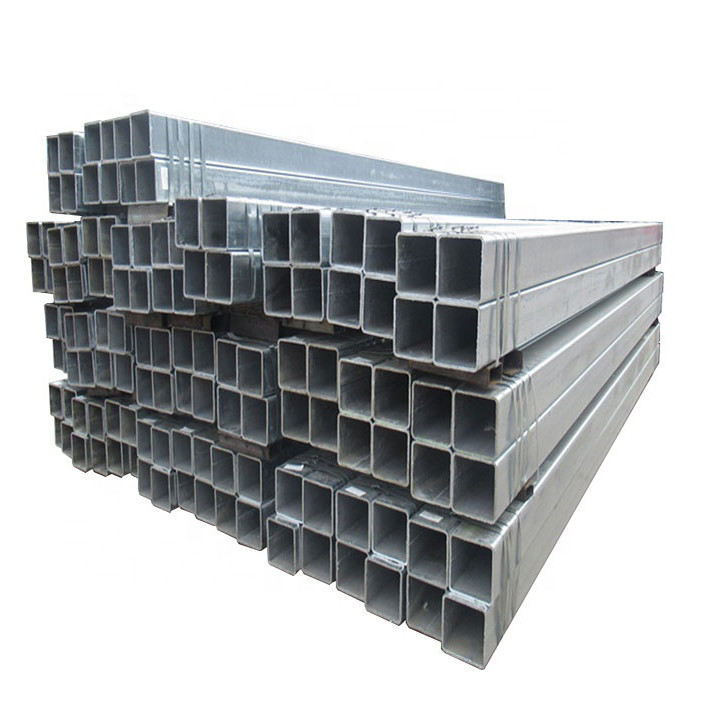

Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 0

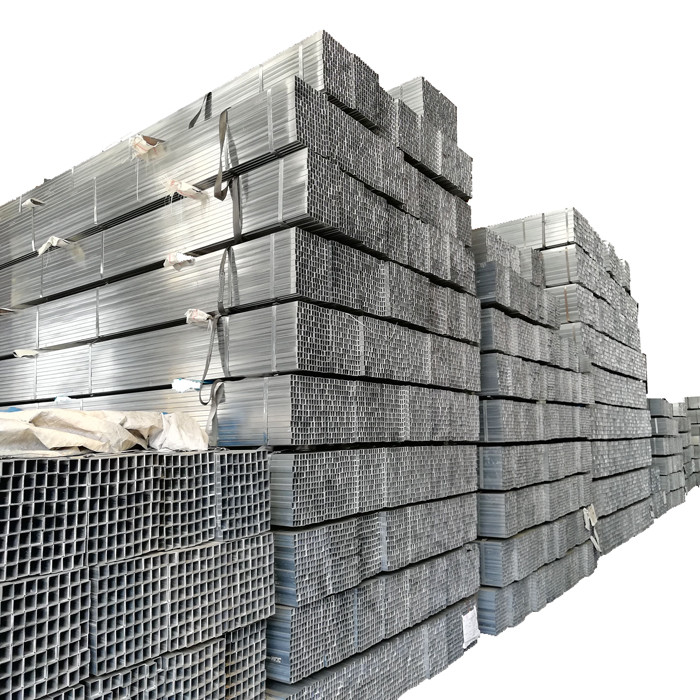

Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 1
Square Pipe size chart
Square Hollow Section
Thickness
20*20 25*25 30*30
1.2-3.0
40*40 50*50
1.2-4.75
60*60
1.2-5.75
70*70 80*80 75*75 90*90 100*100
1.5-5.75
120*120 140*140 150*150
2.5-10.0
160*160 180*180 200*200
3.5-12.0
400*400 280*280 450*300 450*200
5.0-20.0
250*250 300*300 400*200 350*350 350*300
4.5-15.75
Detailed Images

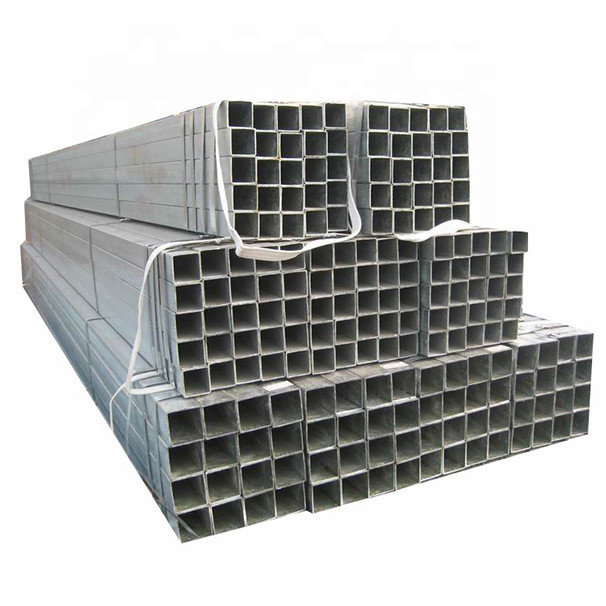

Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 2

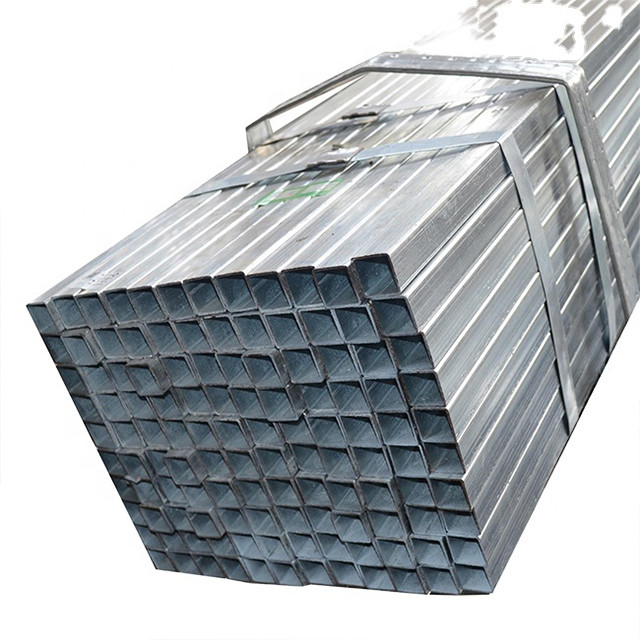

Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 3
Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 4
Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 5
Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 6
Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 7
Processing



Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 8



Why Choose Us ?



Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 9


Company Profile

Square Hot Dipped Pre Galv Tube Electric Welded Resistant With Plain Ends 10

Weifang Wilda Machinery Co.,Ltd founded in 2003. Specializing in the production of

high-precision galvanized welded steel pipes, we can produce round, square and other special-shaped steel

pipes according to customer orders.


We also have sheet metal processing workshop, welding workshop, metal surface treatment workshop,

which can meet the needs of different customers.



excellent employees, advanced technology, and sophisticated equipment, strict management is the company can continue to develop and raise, the product can win users rely on the root. "Accurate, reliable, professional"is our spirit of production and service beliefs
